10" Falcon 40

  • 16Ω
General Characteristics for 8Ω
Nominal Overall Diameter259 mm.10 in.
Nominal Voice Coil Diameter32 mm.1.25 in.
Magnet Weight426 g15.00 oz
Overall Weight3.53 lbs
Flux Density1.10 T
Voice Coil Winding Depth0.35 in.
Magnetic Gap Depth0.24 in.
Thiele-Small Parameters for 8Ω
Voice Coil DC ResistanceRE6.16 Ω
Resonance FrequencyƒS114.4 Hz
Mechanical Q FactorQMS15.37
Electrical Q FactorQES1.60
Total Q FactorQTS1.15
Mechanical Moving MassMMS18.2 g
Mechanical ComplianceCMS106 µm/N
Force FactorBxL7.09 Wb/m
Equivalent Acoustic VolumeVAS16.4 lt.
Maximum Linear DisplacementXMAX±1.50 mm
Reference EfficiencynO1.48 %
Diaphragm AreaSD330.1 cm2
Losses Electrical ResistanceRES59.1 Ω
Voice Coil Inductance @ 1kHzLE0.69 mH
Constructive Characteristics for 8Ω
MagnetFerrite
Voice Coil WindingCopper
Voice Coil FormerEpotex
Cone MaterialPaper
Surround MaterialIntegrated Paper
Dust Dome MaterialNon-treated Cloth
Basket MaterialPressed Sheet Steel
Surround TreatmentYes
Electrical Characteristics for 8Ω
Nominal Impedance8 Ω
Rated Power40 W
Musical Power80 W
Sensitivity@1W,1m95.0 dB
General Characteristics for 16Ω
Nominal Overall Diameter259 mm.10 in.
Nominal Voice Coil Diameter32 mm.1.25 in.
Magnet Weight426 g15.00 oz
Overall Weight3.53 lbs
Flux Density1.10 T
Voice Coil Winding Depth0.35 in.
Magnetic Gap Depth0.24 in.
Thiele-Small Parameters for 16Ω
Voice Coil DC ResistanceRE12.32 Ω
Resonance FrequencyƒS119.0 Hz
Mechanical Q FactorQMS17.27
Electrical Q FactorQES2.34
Total Q FactorQTS2.06
Mechanical Moving MassMMS18.9 g
Mechanical ComplianceCMS95 µm/N
Force FactorBxL8.61 Wb/m
Equivalent Acoustic VolumeVAS14.6 lt.
Maximum Linear DisplacementXMAX±1.50 mm
Reference EfficiencynO1.01 %
Diaphragm AreaSD330.1 cm2
Losses Electrical ResistanceRES90.9 Ω
Voice Coil Inductance @ 1kHzLE1.02 mH
Constructive Characteristics for 16Ω
MagnetFerrite
Voice Coil WindingCopper
Voice Coil FormerEpotex
Cone MaterialPaper
Surround MaterialIntegrated Paper
Dust Dome MaterialNon-treated Cloth
Basket MaterialPressed Sheet Steel
Surround TreatmentYes
Electrical Characteristics for 16Ω
Nominal Impedance16 Ω
Rated Power40 W
Musical Power80 W
Sensitivity@1W,1m93.4 dB
JC10-40FA
10"
,
40 watts
  • Ohms:
  • 16Ω

The Falcon 10" tone is warm and straightforward with a pronounced low end. Its mid frequencies are slightly enhanced over the Falcon 12", and it has a very sweet, yet cutting, high end. When presented with overdrive distortion it creates some mean fuzz. With its 40 watts of power, a ceramic magnet, and a seamed green cone made from all natural materials, the 10" Falcon is specially designed to ensure optimum tone for all styles of music.

Lows:Mids:Highs:Overdrive:
Tight/FatFirmSmoothCrunchy
Warm, straightforward tone with a pronounced low end. When presented with overdrive distortion, it presents some mean fuzz.
Sound Samples:
Clean Sound Sample00:16https://www.jensentone.com/sites/jensentone.com/files/sound_samples/jc10-40fa_clean.mp3
Overdriven Sound Sample00:15https://www.jensentone.com/sites/jensentone.com/files/sound_samples/jc10-40fa_overdriven.mp3
Blues Sound Sample00:49https://www.jensentone.com/sites/jensentone.com/files/sound_samples/jc10-40fa_blues.mp3
Country Sound Sample00:35https://www.jensentone.com/sites/jensentone.com/files/sound_samples/jc10-40fa_country.mp3
Jazz Sound Sample00:43https://www.jensentone.com/sites/jensentone.com/files/sound_samples/jc10-40fa_jazz.mp3
Metal Sound Sample00:55https://www.jensentone.com/sites/jensentone.com/files/sound_samples/jc10-40fa_metal.mp3
Rock Sound Sample00:41https://www.jensentone.com/sites/jensentone.com/files/sound_samples/jc10-40fa_rock.mp3
Having trouble playing our sound samples? Click here to access the files directly.

User Reviews

Click Here to submit your own review for Jensen Speakers!

I bought two 10" Jet Falcon speakers as an upgrade for my Peavey Delta Blues amp. The results were beyond any of my expectations. These speakers opened up this amp and enhanced the string to string definition improving the articulation and touch sensitivity. Since the Peavey classic series is known to have less bass than other brands, this speaker's abundant bass was the perfect prescription and now I have all the bass I could possibly want without having to resort to "mods" on the circuit. The mids are pushed a bit over their classic speakers but not excessively, and the highs are smooth and chimey with no ice pick tones. All in all this speaker is a winner in all categories and the price point is amazing. I'm beginning to see them offered in high end boutique amps and predict they will be a replacing a lot of Celestion and Eminence brands in the near future. They were PERFECT for my Peavey!!!

Just want to let you know that I used a 10 inch Falcon speaker in my amp build. It is a fantastic speaker very responsive, clear as a bell and a nice warm tone. The bass is just awesome and when overdrived it gives a nice growl but never gets muddy. I am extremely happy with it and want to thank you for recommending it to me. I will always use a Jensen speaker in future projects.

Videos

Falcon and Electric Lightning Demo

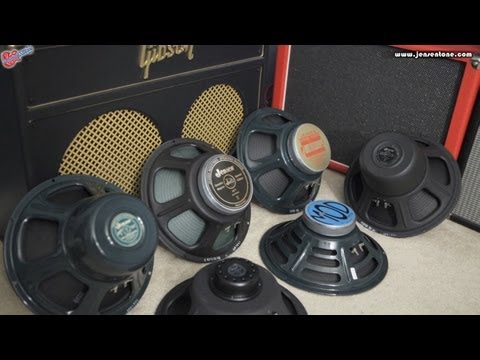

Jensen Speaker Shootout - Dirty Channel
